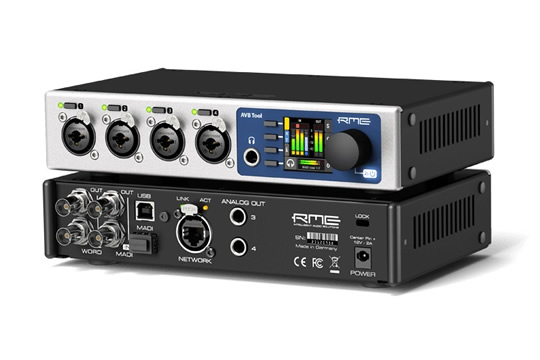

RME AVB TOOL 4-Channel Network AVB Preamplifier/Router





BUY NOW - PAY LATER

Money Back Guarantee

Have a question?
Contact Us

The AVB Tool is a pristine analog converter featuring the most commonly-found analog signals in a control room, recording studio or on stage: 4 XLR-TRS combo inputs, with remote controllable 75 dB gain in 1 dB steps; an input line level sensitivity of +18 dBu, with switchable high impedance on every channel; a stereo headphone output; and 2 analog line level outputs, with switchable +4/+19 dBu reference levels. Power is provided by an external power supply (with locking connector), and a K-slot lock port adds an additional level of security against theft. Seamless redundancy is available for all MADI signals, whenever the secondary MADI port is mirrored with the same signal as the coaxial MADI input. If redundancy is not required, the (optional) optical single- or multimode MADI module is treated as an individual MADI I/O with full bandwidth.

On the AVB side, the number of streams available in the RME AVB core have been doubled to eight streams in AM824 (legacy AVB) or high-performance AAF (MILAN compatible) format - with configurable size and format per stream. Up to 128 audio channels can be sent and received over AVB in total across all streams. The AVB Tool has the same input stages as the first 4 channels of the 12Mic – successfully combining the components found in the Fireface UFX II and UFX+ into a new AD converter, extended with switchable High Impedance, balanced line level on the TRS, and two balanced line level outputs at the rear for monitoring.
